si Aqua

  • Achieves up to 99% reduction in microorganisms (bacteria, viruses, germs)
  • Designed for indoor use with hand trolleys, pallet trucks, and cutter wagons
  • Suitable for transitions from low-care to high-care areas
  • Constructed entirely from corrosion-resistant stainless steel V2A 1.4301
  • Features fine-mesh grating for smooth passage of narrow wheels
  • Fire protection tested according to DIN 13501-1 Bfl-s1
  • Cleaning effectiveness verified by Institute IBELIN

99% FEWER BACTERIA/GERMS/VIRUS

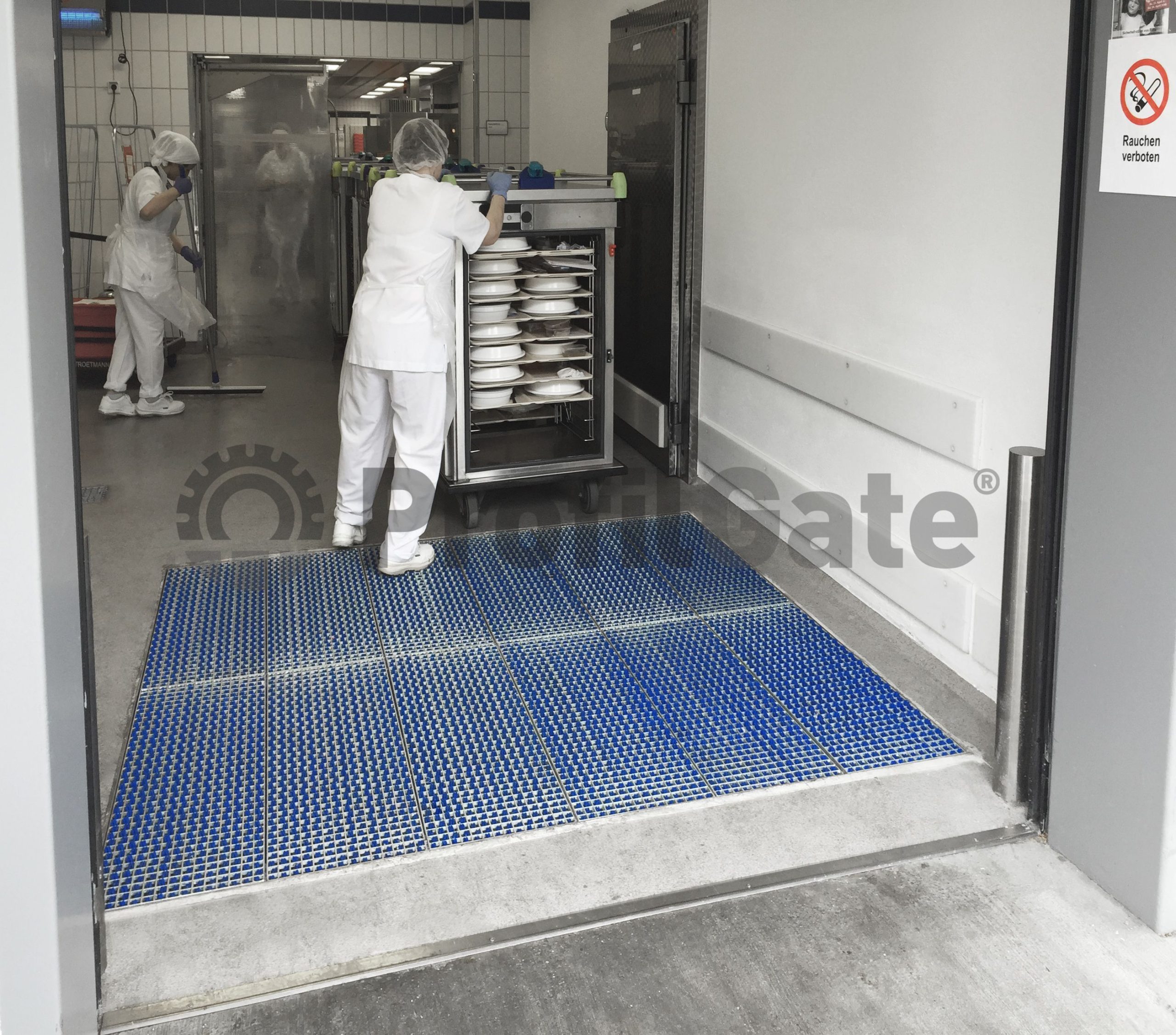

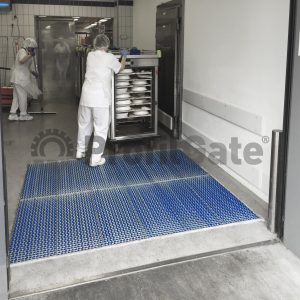

Stops contamination at the entrances and passages of production and logistics halls.

ELIMINATE BACTERIA

Prevents any harmful pathogens from entering critical areas and workplaces.

HEAVY DUTY FOOT BATHS

Built to withstand all conditions and heavy usage.

Why Choose Profilgate

The ProfilGate® si aqua series offers an effective solution for the wet cleaning and disinfection of shoe soles, hand trolleys, pallet trucks, and cutter wagons in indoor environments. Constructed entirely from corrosion-resistant stainless steel V2A 1.4301, these systems are ideal for areas with stringent hygiene requirements, such as those in the food processing and pharmaceutical industries.

Each unit features a fine-mesh stainless steel grating, ensuring smooth and vibration-free passage for equipment with narrow wheels. The integrated bristle strips, composed of PVC bodies and PA 6.0 fibers, effectively clean and disinfect as equipment moves over them.profilgate.com

By incorporating the ProfilGate® si aqua system into your facility, you can significantly reduce the transfer of contaminants between different hygiene zones, supporting compliance with industry standards and enhancing overall cleanliness.

Dirt Trap Tray in Two Heights

In order to disinfect tires, rollers and soles in addition to physical cleaning, water and an appropriate disinfectant are filled into the dirt collection tray on this model.

Depending on the use, you can choose between two heights:

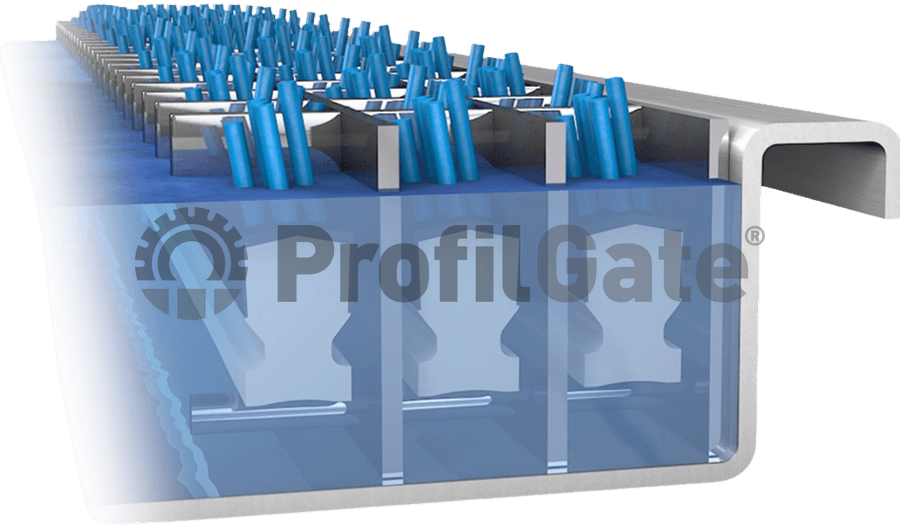

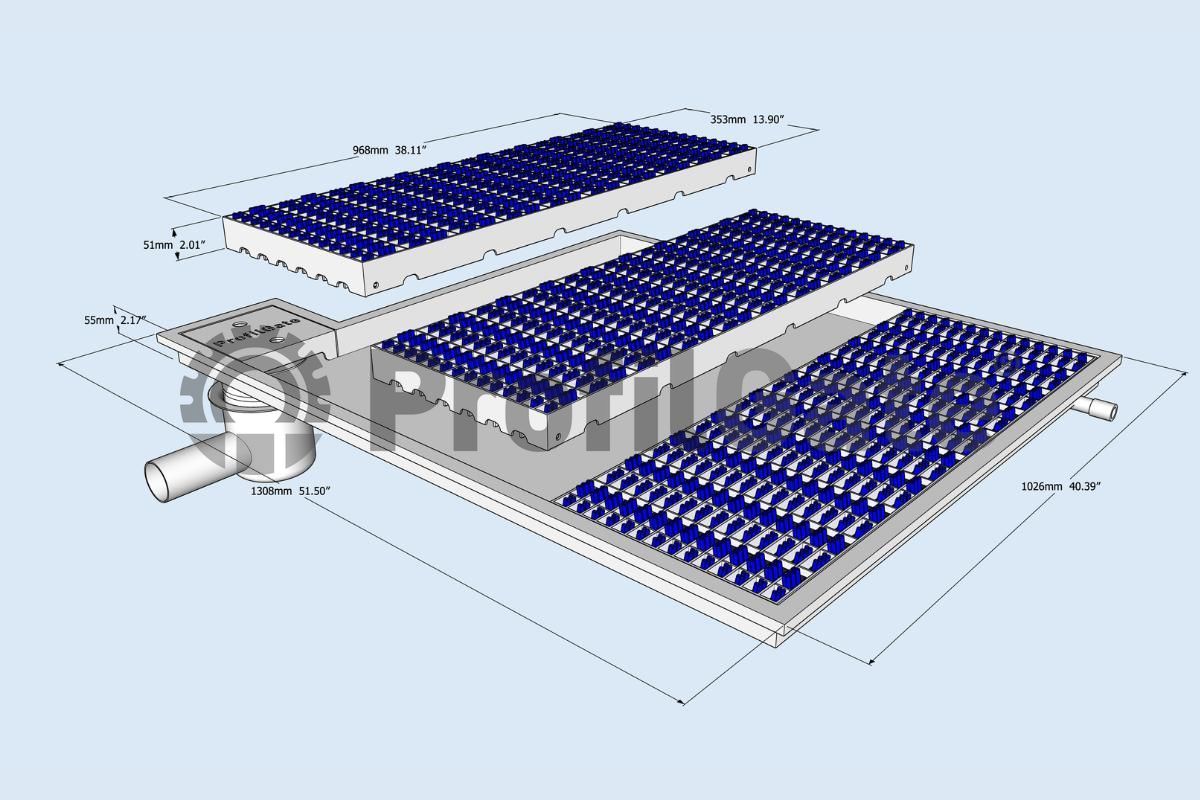

  • 55mm: This version opens up a whole world of possibilities. The system can both be used for cleaning and disinfection, and dry for cleaning and collecting dirt. If you want the option to switch between the two types, or if you initially plan to use the machine dry but also want to be able to use wet cleaning in the future, the 55mm deep tray is the right choice. A 10mm deep dirt reservoir beneath the brush strips collects and retains the cleaned-off dirt.

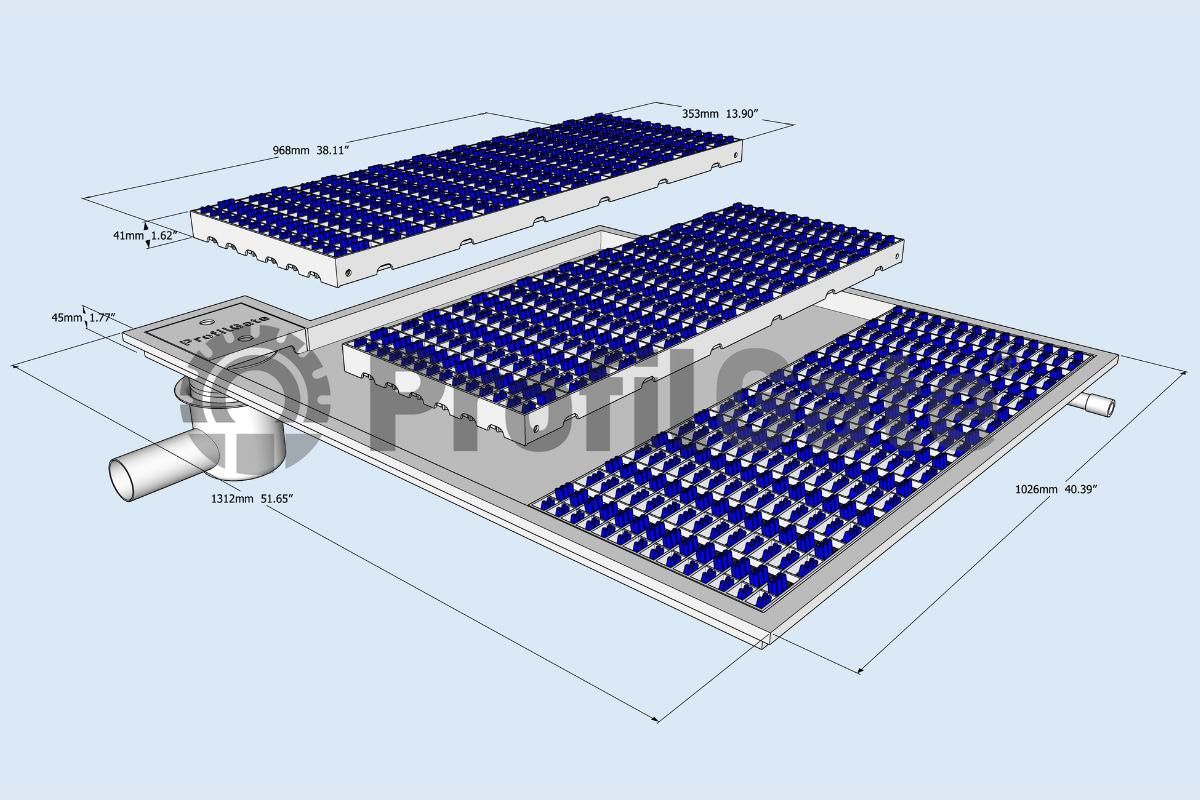

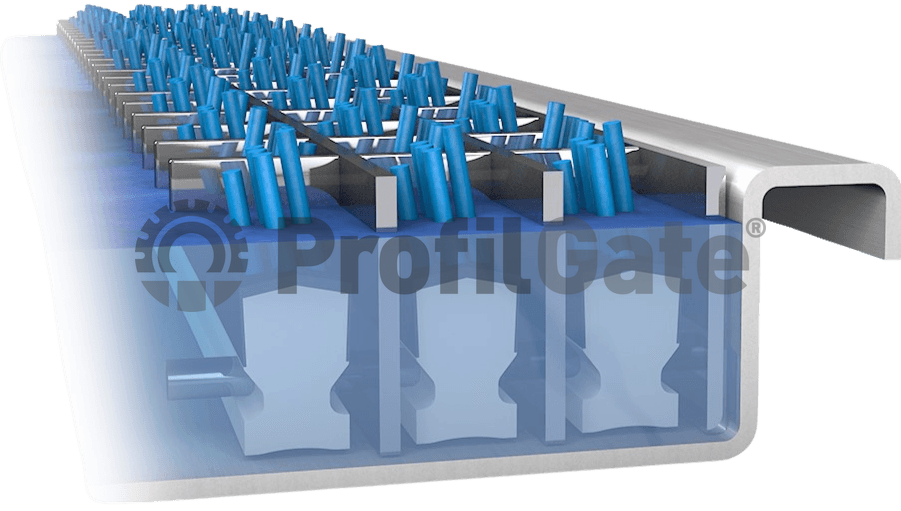

  • 45mm: This flat version is used when the system must be operated wet. There’s no dirt reservoir under the brush strips, as the cleaned dirt float in the liquid anyway and doesn’t settle on the tank floor. Accordingly, unlike the 55cm tub, it doesn’t offer the option of dry use, but the tub’s capacity is also smaller, as it is 10mm shallower. This saves money because less disinfectant is needed per fill.

Determining the Correct Cleaning Field Length

Based on evaluations by the Franhofer IPA Institute and IBELIN Laboratory, we know exactly at what length our clean-off zones achieve their optimal cleaning effect. To get a rough estimate, you can use the following rules of thumb for planning:

  • Transport Vehicles: At least three tire revolutions are sufficient to remove 80% of the dirt. This means the cleaning area should be at least three to four times the tread of the largest tire circumference to be cleaned.
  • Shoe soles: To clean shoe soles, each foot with a normal stride length should have at least four to six contacts with the cleaning field. Of course, the on-site conditions play a crucial role in the precise planning. These include the type of vehicle and dirt, dry or wet cleaning, and much more. If you have any questions about this topic, please click here.
