Aqua Spray

  • Disinfectant solution with bottom disinfection against microorganisms (bacteria, viruses, germs)

  • Reduces microbiological contamination by up to 99%
  • Designed for indoor use with pallet trucks, plastic pallets, and transport boxes
  • Suitable for cleanroom and hygiene-sensitive environments
  • Large, durable bristles penetrate wheel treads and hard-to-reach areas
  • Made from Stainless Steel V2A 1.4301 (Inox)
  • Features integrated supply and drainage for liquid disinfectants
  • Fire protection tested according to DIN 13501-1 Bfl-s1
  • Cleaning effectiveness verified by Institute IBELIN

99% FEWER BACTERIA/GERMS/VIRUS

Stops contamination at the entrances and passages of production and logistics halls.

ELIMINATE BACTERIA

Prevents any harmful pathogens from entering critical areas and workplaces.

HEAVY DUTY FOOT BATHS

Built to withstand all conditions and heavy usage.

Why Choose Profilgate

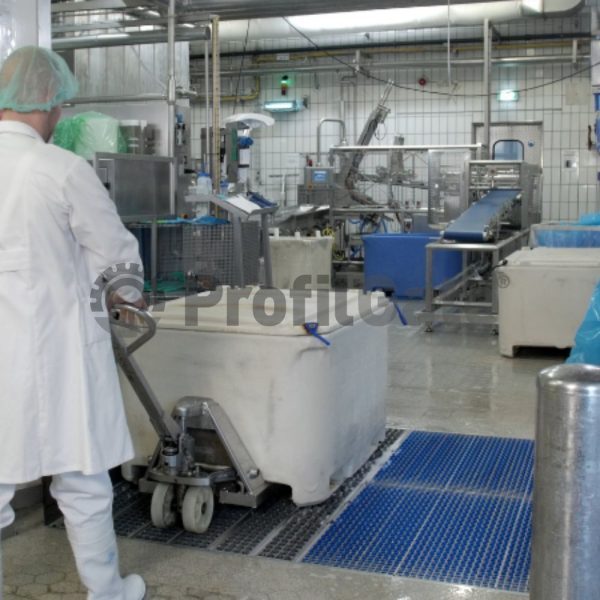

The Aqua Spray series from ProfilGate® is specifically designed for the wet cleaning and disinfection of wheels and treads on pallet trucks, transport boxes, and plastic pallets in indoor environments. The “i” stands for Inox stainless steel, ensuring a corrosion-resistant construction ideal for high-hygiene zones such as those found in the pharmaceutical, food, and logistics industries.

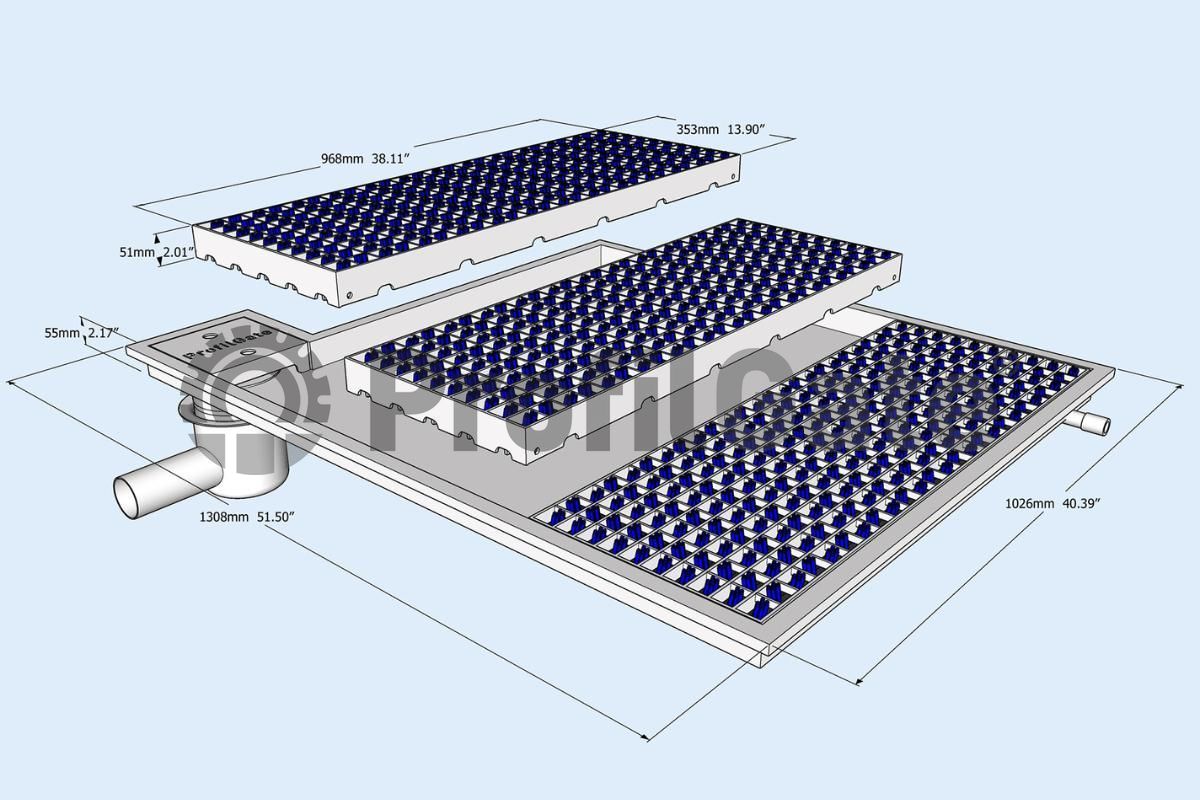

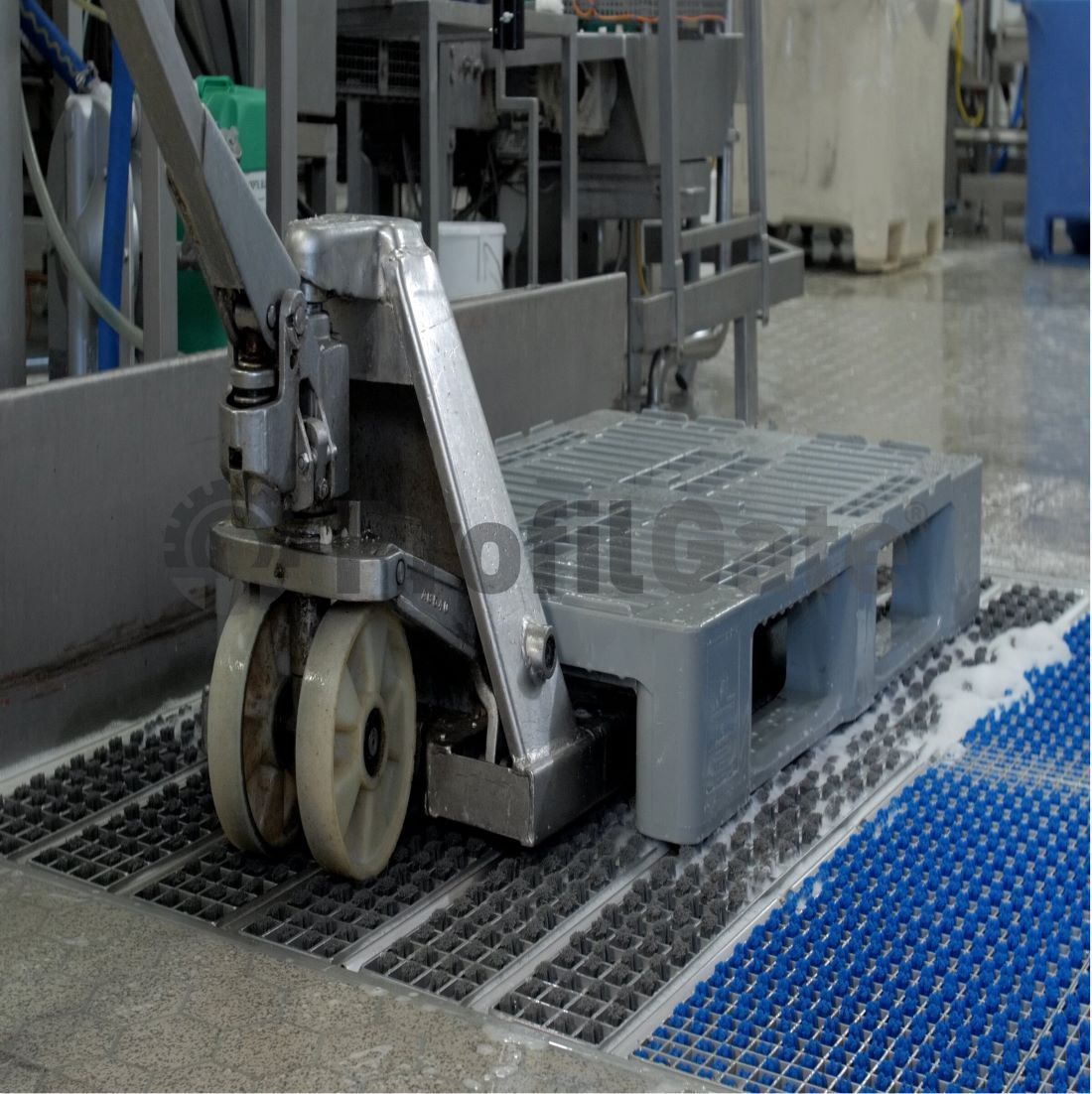

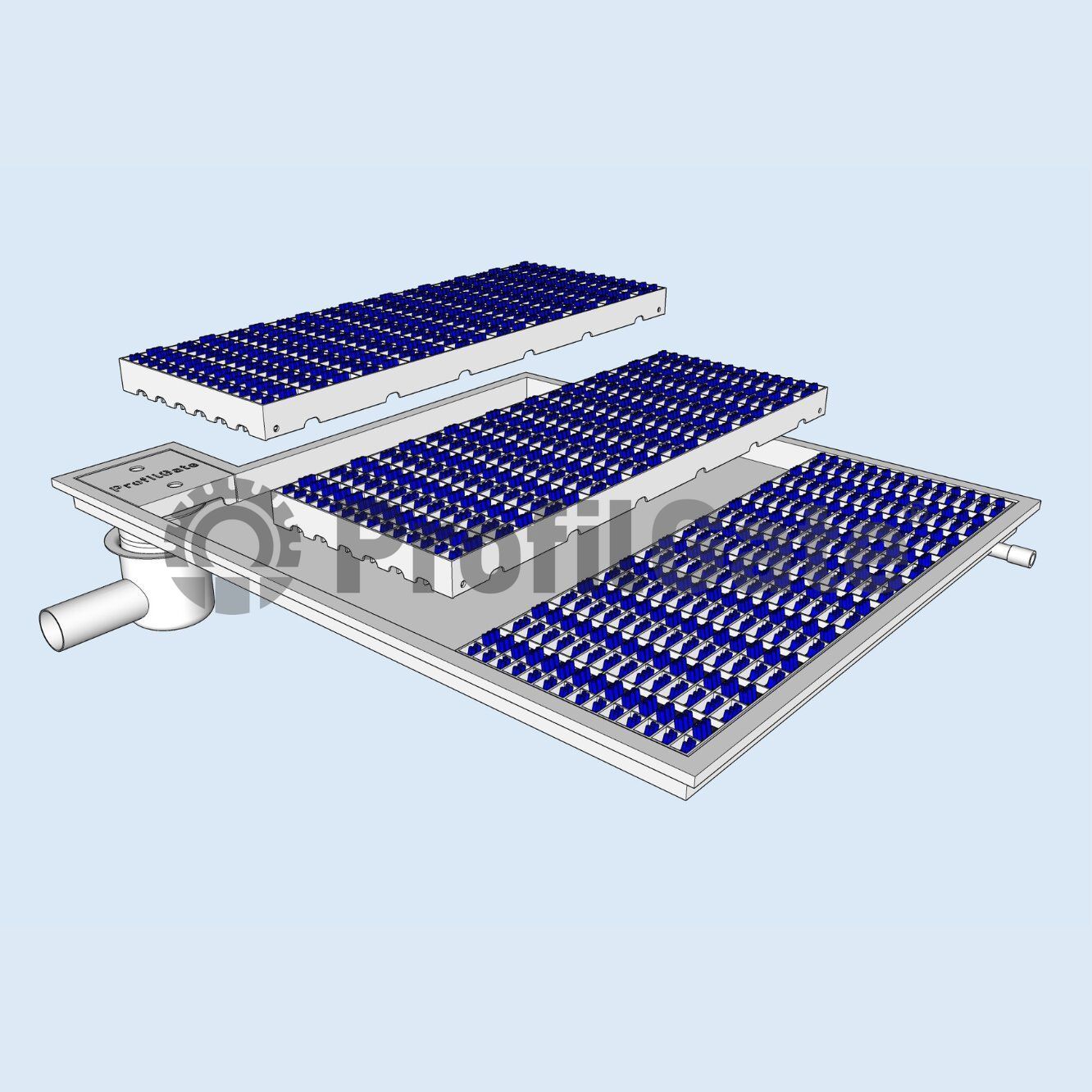

Each stainless steel tray features an integrated inlet and outlet system to manage the flow of disinfectant, enabling efficient drainage of used liquid. When equipment passes over the system, robust bristles flex and clean the wheels while enabling capillary action, which ensures that disinfectant penetrates deep into treads and contact surfaces.

This prevents microbial contaminants from being carried into critical hygiene areas, helping facilities maintain stringent sanitation protocols. For consistent disinfection performance, we recommend pairing the i-Plus Aqua with the ProfilGate® dosing station for automated or manual filling of the disinfection basins.

Dirt Trap Tray in Two Heights

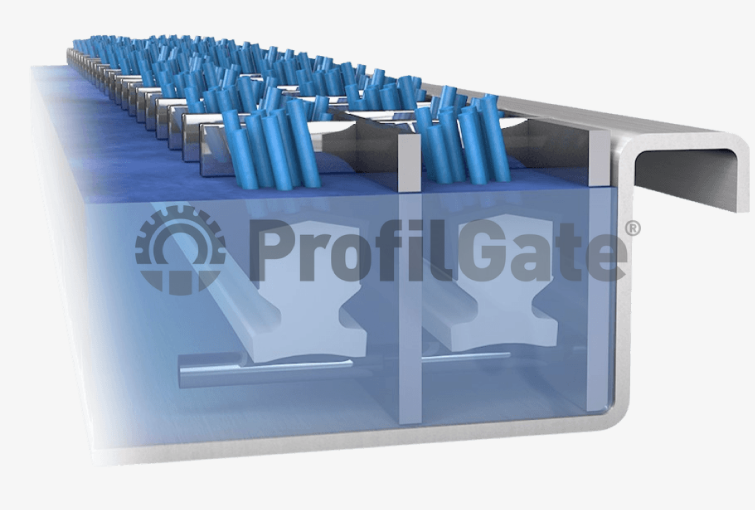

To prevent dirt from spreading within production and logistics halls, it is collected in a collecting tray under the cleaning mats.

Choosing the right tub height depends on three crucial factors:

  1. Requirements
    Before making a decision, it must be clear what the site looks like, whether cleaning should be done inside, outside or both, and how wide the passageways are.
  2. Vehicles and Frequency:
    Which vehicles cross the clean-walking zone? Do shoe treads also need to be cleaned? How many crossings occur per day? For higher frequency, we recommend using a deeper tray because more dirt can be collected.
  3. Maintenance intervals:
    The deeper the tray, the more dirt it can hold and the longer the cleaning interval. This saves you work, as the drip trays need to be cleaned less frequently.

Determining the Correct Cleaning Field Length

Based on evaluations by the Franhofer IPA Institute and IBELIN Laboratory, we know exactly at what length our clean-off zones achieve their optimal cleaning effect. To get a rough estimate, you can use the following rules of thumb for planning:

  • Transport Vehicles: At least three tire revolutions are sufficient to remove 80% of the dirt. This means the cleaning area should be at least three to four times the tread of the largest tire circumference to be cleaned.
  • Shoe soles: To clean shoe soles, each foot with a normal stride length should have at least four to six contacts with the cleaning field. Of course, the on-site conditions play a crucial role in the precise planning. These include the type of vehicle and dirt, dry or wet cleaning, and much more. If you have any questions about this topic, please click here.

Related products

  • Series i Aqua

    The clean zones of the i-aqua series are designed for wet cleaning and disinfection of tires, rollers, wheels and shoe soles. As in the names of the other ProfilGate® series,…

  • si Aqua

    The ProfilGate® si aqua series offers an effective solution for the wet cleaning and disinfection of shoe soles, hand trolleys, pallet trucks, and cutter wagons in indoor environments. Constructed entirely…

  • sti p45 Aqua

    This portable system is for sanitation of shoes and wheels with stainless steel ramps. The system will have the dosing and waste on the one side only. The fine-mesh, special-steel…
